Take-Up & Pay-Off
Machine

Take-Up &
Pay-Off
Machine

The H-Type Portal Take-Up & Pay-Off System by Bootbhavani Fabricators handles medium to heavy-duty cables with precision. Its robust H-frame, rail-based traverse, and ergonomic controls ensure accurate reel alignment and efficient winding, with manual or semi-automatic reel changes for standalone or integrated use.

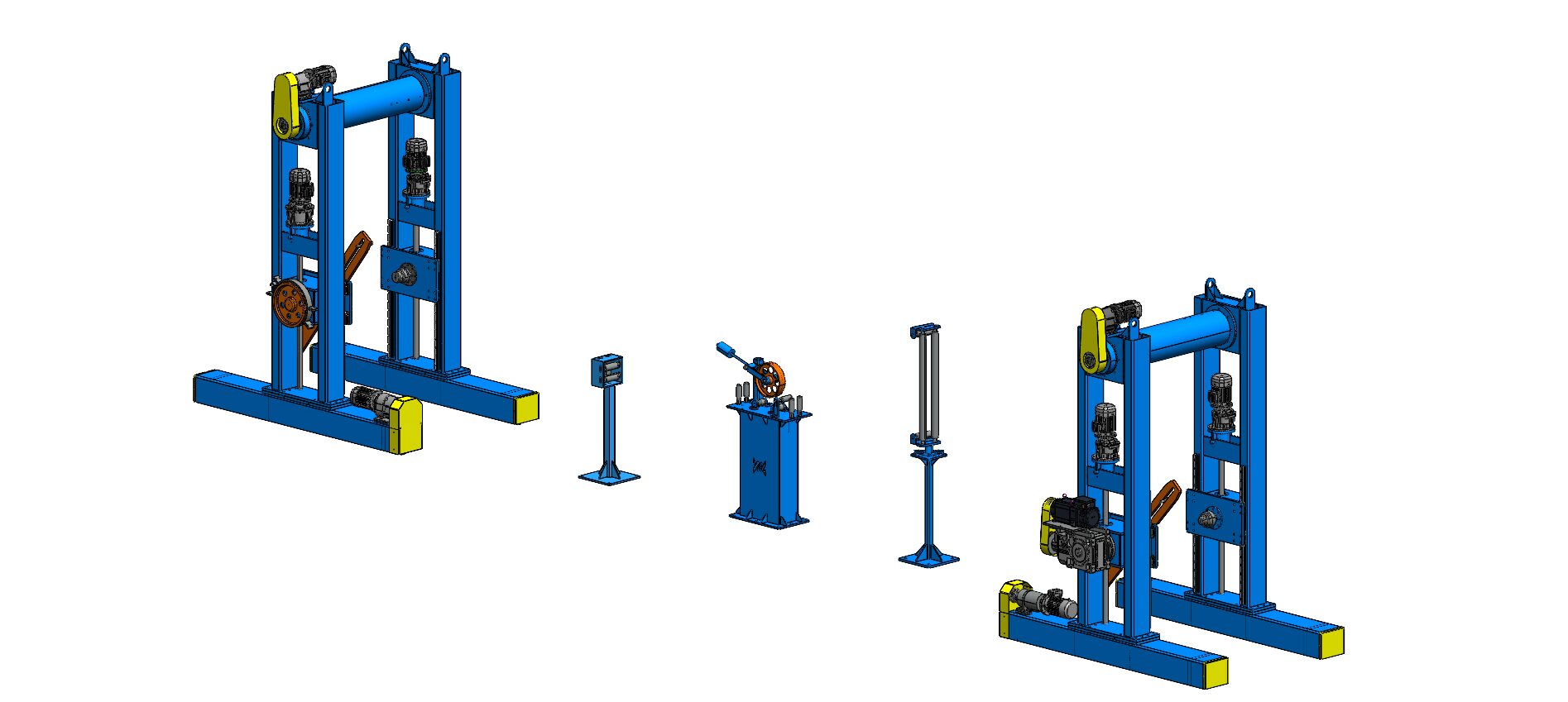

Portal H-Type

The H-Type Portal Take-Up & Pay-Off System from Bootbhavani Fabricators is built for medium to heavy-duty cable handling with a robust H-frame design. It offers precise reel alignment through traverse movement on embedded or raised rails. Featuring manual or semi-automatic reel changes, ergonomic controls, and recipe-based setups, it ensures efficient operation. Advanced AC drives and servo-driven traverse deliver accurate, high-quality cable winding for standalone or integrated production use.

Key Features Advantages
  • Heavy-duty H-frame portal construction
  • Embedded or raised rail traverse system
  • Manual or semi-automatic reel handling
  • AC drive system with multiple control modes
  • Servo-driven traverse for precise cable laying
  • Ideal for large, heavy reel operations
  • Quick reel setup with recipe functions
  • Smooth integration with automated lines
  • Ergonomic control for easy operation
  • Low maintenance with durable drive system

Portal A-Type

The A-Type Take-Up & Pay-Off System by Bootbhavani Fabricators features a sturdy "A" frame design for strength and easy access. It ensures smooth reel positioning with traverse movement on a rail or platform and supports manual or semi-automatic reel changes. With advanced AC drives, servo-driven traverse, and multiple drive modes, it delivers precise cable laying and flexible, efficient operation for demanding cable winding needs.

Key Features Advantages
  • Robust A-frame structure for stability
  • Embedded or raised rail traverse options
  • Manual or semi-automatic reel change
  • Servo-driven cable laying precision
  • Supports torque, dancer, speed control modes
  • Fast setup with reel parameter recipes
  • Ergonomic operation with intuitive control panel
  • Smooth reel handling and positioning
  • Compatible with automated or standalone lines
  • Low maintenance with AC drive system

Column Type

The Column Type Portal Take-Up & Pay-Off System by Bootbhavani Fabricators is built for large-diameter reels up to 5000 mm and 60 tons, ideal for high-capacity cable production. It emphasizes safety with perimeter fencing and offers automatic or semi-automatic reel handling. Featuring overhead traverse motion and a hanging operator panel, it enables easy control. Advanced AC drives support torque, dancer, or accumulator modes for smooth, reliable cable winding.

Key Features Advantages
  • Handles reels up to 5000 mm diameter
  • Supports loads up to 60 tons
  • Traverse movement via overhead beam system
  • Hanging operator panel for convenient control
  • AC drive modes: torque, dancer, accumulator
  • Ensures safety with fencing barriers
  • Suitable for extreme heavy-duty cable handling
  • Flexible reel handling: automatic or semi-auto
  • Seamless integration with modern production lines
  • Stable, precise control with AC drive technology

Takeup & Paypff – Technical Parameters

Model Bobbin Size (mm) Bobbin Width (mm) Cable Dia. (mm) Line Speed (MPM) Loading Capacity (MT)
BF - 1250 630 - 1250 600 - 950 15 Upto 120 4
BF - 1600 800 - 1600 600 - 1180 40 Upto 120 6
BF - 2000 1000 - 2000 750 - 15000 60 Upto 120 8
BF - 2600 1250 - 2600 700 - 1500 80 Upto 110 10
BF - 3200 1600 - 3200 1880 - 2000 120 Upto 90 15
BF - 3600 2000 - 3600 1400 - 2200 120 Upto 65 Up to 30
BF - 4000 2000 - 4000 1500 - 2500 160 Upto 50 Up to 50
BF - 5500 2600 - 5500 1600 - 2600 180 Upto 35 Up to 50

Mode : Bf - 1250

Bobbin Size (mm)630 - 1250
bobbin width (mm)600 - 950
Cable Dia. (mm)15
Line Speed (MPM)Upto 120
Loading Capacity (T)4

Mode : Bf - 1600

Bobbin Size (mm)800 - 1600
bobbin width (mm)600 - 1180
Cable Dia. (mm)40
Line Speed (R / Min)Upto 120
Loading Capacity (T)6

Mode : Bf - 2000

Bobbin Size (mm)1000 - 2000
bobbin width (mm)750 - 1500
Cable Dia. (mm)60
Line Speed (MPM)Upto 120
Loading Capacity (T)8

Mode : Bf - 2600

Bobbin Size (mm)1250 - 2600
bobbin width (mm)950 - 1900
Cable Dia. (mm)80
Line Speed (MPM)Upto 110
Loading Capacity (T)10

Mode : Bf - 3200

Bobbin Size (mm)1600 - 3200
bobbin width (mm)1180 - 2000
Cable Dia. (mm)120
Line Speed (MPM)Upto 90
Loading Capacity (T)15

Mode : Bf - 3600

Bobbin Size (mm)2000 - 3600
bobbin width (mm)1400 - 2200
Cable Dia. (mm)120
Line Speed (MPM)Upto 65
Loading Capacity (T)Upto 30

Mode : Bf - 4000

Bobbin Size (mm)2000 - 4000
bobbin width (mm)1500 - 2500
Cable Dia. (mm)160
Line Speed (MPM)Upto 50
Loading Capacity (T)Upto 50

Mode : Bf - 5500

Bobbin Size (mm)2600 - 5500
bobbin width (mm)1600 - 26000
Cable Dia. (mm)180
Line Speed (MPM)Upto 50
Loading Capacity (T)Upto 50
